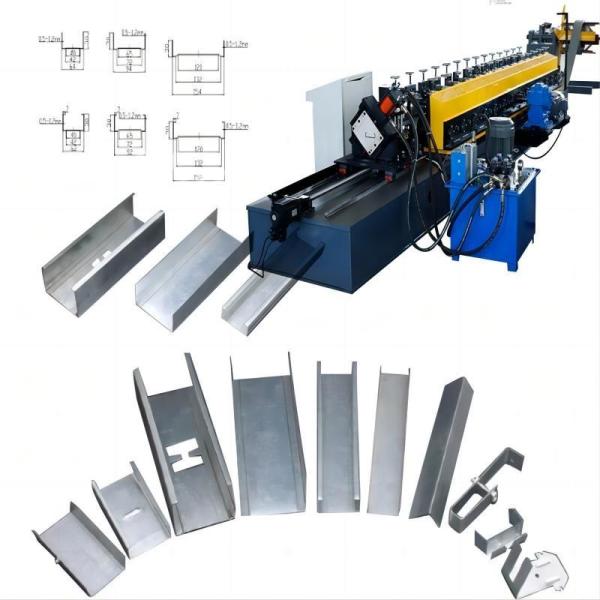

Metal Stud Solar Strut Roll Forming Machine Steel Roll Former

Place of Origin : Guangdong, China

Brand Name : HRF

Price : $12,000.00/sets 1-1 sets

Applicable Industries : Building Material Shops, Manufacturing Plant, Construction works

Showroom Location : Turkey, Germany, India, Russia, South Korea, Uzbekistan

Condition : New

Type : Tile Forming Machine

Tile Type : Glazed

Use : WALL

Production Capacity : 30 m/min

Voltage : 380V Or As Customize

Dimension(L*W*H) : 12x2.2x3m

Weight : 5000 kg

Warranty : 1 Year

Key Selling Points : High Productivity

Rolling thinckness : 0.7mm-1.5mm

Feeding width : 100-600mm

Machinery Test Report : Not Available

Video outgoing-inspection : Not Available

Marketing Type : New Product 2020

Warranty of core components : 1 Year

Core Components : Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Material Thickness : 0.7-1.5mm

Control system : automatic

Main Power : 15kw

forming station : 18

work speed : 15-20m/min

way of drive : chain ,1 inch

plc : mitsubishi/delixi/siemens

Raw material : PPGI

name : metal stud and track roll forming machine stud and track machine

Contact Now

Metal Stud Solar Strut Roll Forming Machine Steel Roll Former

NO.	Name	Quant.	Remark
1	5T hydraulic Motoized decoiler	1 set	1)Max 5T 2)Max coil:500mm 3)Motor:5.5kw made in China
2	Leveling machine	1 set	1) 7 rolls leveling( top 3 rolls and bottom 4 rolls) 2)Rolls material:40Cr 3)Leveling speed:max 20m/min 4)5.5kwdriving-motor,speed adjustable
3	Speed control sensor	1 set	It can make the punching and forming speed simutaneous
4	SRF300B servo motor Feeder	1 set	1)Feeding speed:max 20m/min 2)Mitsubishi servo-feeder system and PLC,made in Japan 3) 70 mm feeder rolls
5	Punching press	1 set	1)Model:JF21-80 2)Motor:11KW 3)Slide stroke:max 45 times /min
6	Punching mould	1 set	1)Mould material Cr12Mov
7	Main forming Machine unit	1 set	1)20 forming stands 2) Cast iron stands 3)Gearbox drive 4) power:45kw
8	Turkish head	1 set	It can make the product straight
8	Flying shear	1 set	1)Yaskawa servo-motor control with ball screw 2)Servo-motor power 3 kw
9	Cutting blade	10 sets	Cr12
10	motorized table	1 set	1) Length :6m 2) Pneumatic control
11	Electric panel	1 set	1)PLC control system,Panasonic/Siemens 2)Yaskawa inverter 3)Omron encoder
12	Cooling&lubrication system	--	---

Get the latest offer now!

FAQ

1.Can one machine only produce one size? Not exactly, it depends on the machine. 2. Do you have after-sales support? Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed. 3. How to visit your company? We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North. 4. What can you do if the machine is broken? Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the express cost by yourself. if after the warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment. 5.Can you be responsible for transport? Yes, please tell us the destination port or address. we have rich experience in transport. 6. 6.You are a trade company or factory? We are a Manufacturer. 7. Why your price is higher than others? As we persist on that each factory should put quality in the first place. We spend time and money on developing how to make machines much more automatic, accurate, and high quality. We can make sure that our machine could use more than 20 years without any problem. 8. Do you have overseas engineers? Yes, we not only provide overseas engineers but also provide technical training. 9. Do you provide customized? Sure, we can design the equipment according to the data of the structural section you provide. We are a professional sheet metal forming machine designer and manufacturer.
